B-SECURUS filter monitoring
B-SECURUS filter monitoring

B-SECURUS filter monitoring
The B-SECURUS system monitors the saturation of the filter cartridge(s) by measuring the moisture in the molecular sieve. Read more

Intake pressure reduction
Intake pressure reduction

Intake pressure reduction
IIntake pressure reduction ensures that the compressor takes in the gas at the appropriate pressure. The level of intake pressure reduction is adjusted according to prevailing gas pressure and required intake pressure. Integrated safety valves and pressure monitoring effectively ensure that intake pressure does not fall below or above the permissible level.

First stage separator
First stage separator

First stage separator
The installation of a separator after the first compressor stage is recommended for units operating in conditions where the moisture content of the ambient air is high (in tropical regions and for the effective compression of gases with a high moisture content. Read more

B-KOOL refrigeration dryer
B-KOOL refrigeration dryer

B-KOOL refrigeration dryer
The normal service life (capacity) of a filter cartridge can be extended many times over by additional cooling of the compressed air with the B-KOOL refrigeration dryer. Read more

Super-Silent cladding
Super-Silent cladding

Super Silent version
Super Silent housing reduces the noise level of the compressor unit and enables an exhaust shaft to be used. For units in the MINI-VERTICUS & VERTICUS series, Super-Silent sound insulation can be retrofitted on request.

B-CONTROL II compressor control
B-CONTROL II compressor control

B-CONTROL II
The BAUER B-CONTROL II compressor control is the extended version of the B-CONTROL MICRO basic compressor control. Read more

Temperature Sensor
Temperature Sensor

Monitoring the intermediate pressures and intermediate stage temperatures
This monitoring system is recommended for continuous operation and fully automated operation, as well as for compressor units that do not receive regular attention from specialist personnel. Monitoring tracks the minimum value of stage 1 (intermediate pressure only) and the maximum value of all compressor stages. The compressor unit shuts off if the values monitored fall below or exceed the permissible limit values. The actual value is displayed by the B-CONTROL compressor control unit.

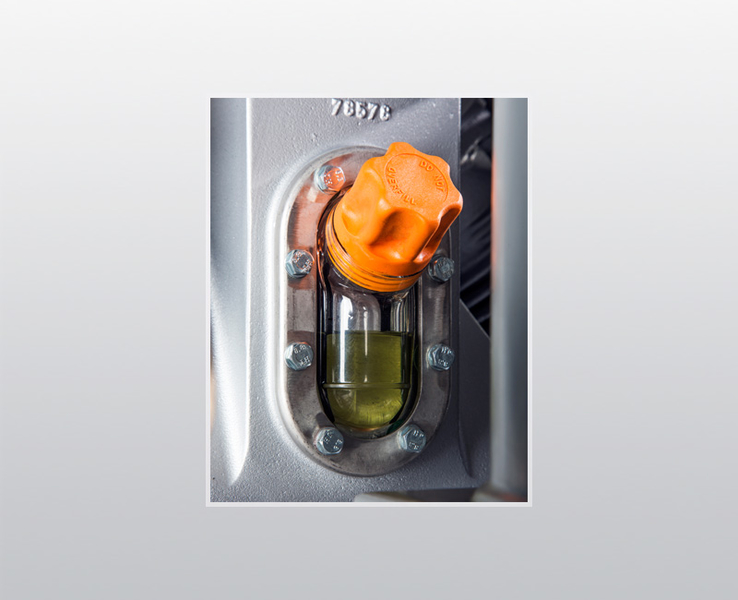

Oil level monitoring
Oil level monitoring

Oil level monitoring
If the oil level reaches the minimum mark, this is indicated on the control display as a warning message. This option is highly recommended for compressor units in continuous operation.

B-APP
B-APP

B-APP
B-APP allows users to remotely control and monitor compressors with the new B-CONTROL MICRO. B-APP also offers additional features such as product-specific news, videos, an integrated dealer search function and calculation tools. Available in the AppStore (iOS) and on GooglePlay (Android). Read more

P 61 filter system
P 61 filter system

P 61 Purification system
The units in the MINI-VERTICUS & VERTICUS series can be supplied with the P 61 purification system integrated as an option. Clean air and gas qualities meeting the requirements of ISO 8573-1 (among others) can be achieved.

P 81 filter system
P 81 filter system

P 81 Purification system
The units in the MINI-VERTICUS & VERTICUS series can be supplied with the P 81 purification system integrated as an option. This system doubles the intervals for changing cartridges compared with the P 61 purification system and meets the requirements of more far-reaching treatment standards.

Particulate filter
Particulate filter

Particulate filter
An integrated particulate filter is offered as an option in conjunction with the P61 and P81 purification systems, to remove particulates safely in compliance with industrial requirements under ISO 8573 class 2.

Intermediate pressure gauges
Intermediate pressure gauges

Intermediate pressure gauges
Analogue pressure gauges mounted on the compressor unit in a suitable location. They make it easy to check, diagnose and maintain the unit.

Intake system
Intake system

Intake system
The intake system is needed to supply the compressor with air or gas at a suitable and monitored intake pressure. Read more

Extended base frame
Extended base frame

Base frame
The compressor and up to 2 storage bottles each with a geometric capacity of 50 or 80 litres are installed on the extended base frame, making this a turnkey system.

Display B-CONTROL II
Display B-CONTROL II

B-CONTROL II
The BAUER B-CONTROL II is the advanced version of the B-CONTROL MICRO basic compressor control. Read More

Exhaust shaft
Exhaust shaft

Exhaust shaft
Two types of exhaust shaft are available for the installation of compressors in containers, housings or service rooms. Read more

Gehäuseheizung
Gehäuseheizung

Gehäuseheizung
ffff

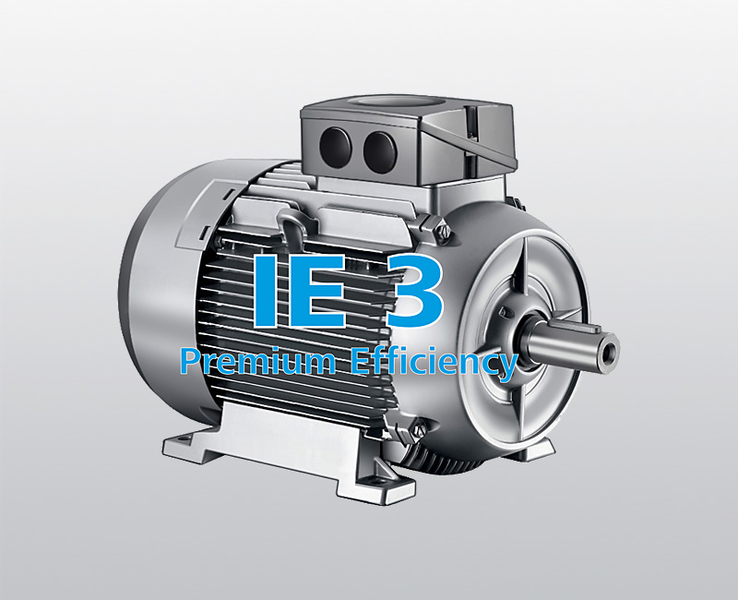

Motor energy efficiency class IE3
Motor energy efficiency class IE3

MV: Energy efficiency class IE3

Energy efficiency class IE3
On request, BAUER compressor units can be fitted ex works with energy-saving three-phase motors meeting the requirements of energy efficiency class IE3. As of 7.5 kW engine rating those motors are already standard scope of supply.
