The compressor blocks in the B and E series (MINI-VERTICUS) feature 3 compressor stages for final pressure levels of 30 to 100 bar.

With their outstanding surface hardness, plasma-nitrided and plateau-honed cylinders are able to achieve extremely long service lives combined with low energy consumption and reliable oil lubrication of cylinder surfaces.

The high-pressure final stage of the compressor features a piston with piston rings made from high-tech plastic which is virtually wear-free. The compression piston is able to move freely and is not connected to the guide piston. Lateral forces which may cause increased wear are therefore prevented.

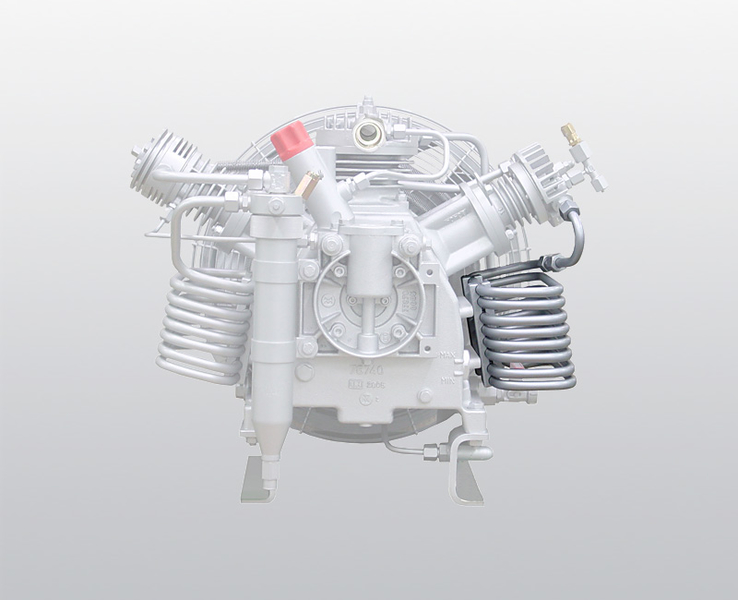

Generously dimensioned stainless steel intercoolers and aftercoolers and intermediate and final separators can be relied upon to remove condensate and safeguard long and reliable operation.
