I 22 – The professional stationary compressor units with electric drive for the most demanding application conditions

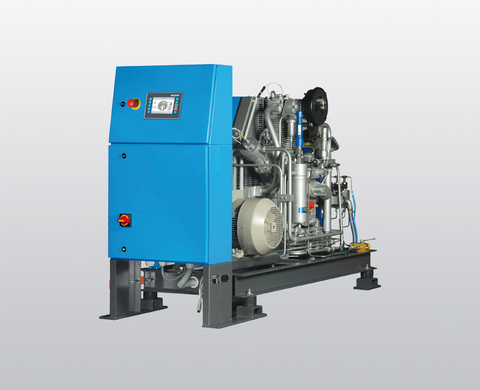

BAUER KAP 220 breathing air compressor, open
BAUER KAP 220 breathing air compressor, open

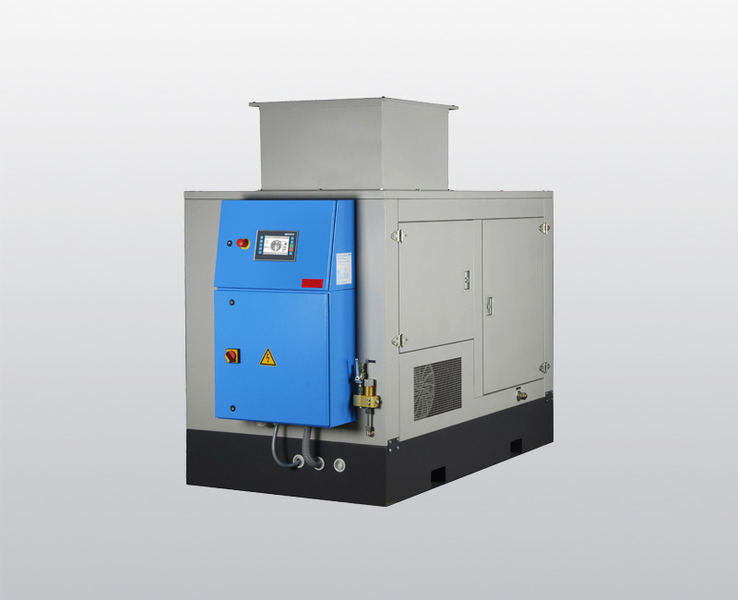

BAUER KAP 220 high-pressure compressor, closed
BAUER KAP 220 high-pressure compressor, closed

Open or closed design: Tailored to meet the needs of your application

Fully automatic compressor control: B-CONTROL MICRO

Little space required: Thanks to compact horizontal design

External P 80/P 100 filter system: Providing you with clean breathing air conforming to DIN EN 12021¹, the standard for breathing air

The I 22 series by BAUER KOMPRESSOREN is tailor-made to deliver high performance in professional applications under the toughest conditions.

These powerful horizontal stationary compressor units are available in open or fully closed versions for both PN 330 bar and PN 420 bar.

Your IK 22 series compressor block has been designed for the most demanding professional applications. Dimensioned for more than 30,000 operating hours, it has proven its worth in thousands of application scenarios.

With their outstanding surface hardness, plasma-nitrided and plateau-honed cylinders are able to achieve extremely long service lives combined with low energy consumption and reliable oil lubrication of cylinder surfaces.

Furthermore, wear-resistant piston rings in the final stage minimize running costs. The compressor block is both efficient and reliable. Stainless steel cooling ribs provide the basis for particularly efficient cooling and thus very long service life.

Operators can choose from a selection of electric motors to drive their applications.

¹ If the units are maintained and installed correctly as described in the user manual and subject to the BAUER AERO-GUARD being used if CO2 concentration in the intake air exceeds prescribed standard values.

All the information you need at your fingertips!

IK 22 4-stage compressor block
IK 22 4-stage compressor block

IK 22 compressor block
The BAUER IK 22 series compressor block has been designed for the most demanding professional applications. Dimensioned for more than 30,000 operating hours, it has proven its worth in thousands of application scenarios. Read more

P 100 filter system
P 100 filter system

P 80 or P 100 filter system
When used in conjunction with original BAUER filter cartridges, the P 80 or P 100 filter systems with oil and water separator and pressure retention check valve can be relied upon for breathing air treatment conforming to DIN EN 12021¹. A type-tested and sealed final pressure safety valve enables particularly high levels of operational safety to be achieved. 5200 m³ (P 80) or 8000 m³ (P 100) of air can be treated.

¹ If the units are maintained and installed correctly as described in the user manual and subject to the BAUER AERO-GUARD being used if CO2 concentration in the intake air exceeds prescribed standard values.

Display B-CONTROL MICRO
Display B-CONTROL MICRO

B-CONTROL MICRO compressor control
The B-CONTROL MICRO is a modern, easy-to-use compressor control with colour display for the control and reliable monitoring of all basic functions. Read more

Super Silent Version
Super Silent Version

Super Silent Version
Super Silent compressors benefit from fully noise-damped cladding and optimised cooling air supply.

B-SECURUS filter monitoring
B-SECURUS filter monitoring

B-SECURUS filter monitoring
The B-SECURUS system monitors the saturation of the filter cartridge(s) by measuring the moisture in the molecular sieve. Read more

Display B-CONTROL II
Display B-CONTROL II

B-CONTROL II
The BAUER B-CONTROL II is the advanced version of the basic compressor control B-CONTROL MICRO. Read more

Special paint finish
Special paint finish

Paint finish/Special paint finish
All frame parts of BAUER compressors are finished with a sophisticated powder coating. Read more

Other voltages/frequencies
Other voltages/frequencies

Other voltages/frequencies
All electric motors are available with other voltages and frequencies on request.

AERO-GUARD
AERO-GUARD

AERO-GUARD
Using the AERO-GUARD reduces the CO2 content of the breathing air to approximately one-third of the intake value. The constantly increasing levels of CO2 concentration in the air resulting from unfavourable environmental influences are making it more and more difficult for the operators of filling stations to be sure of achieving compliance with legally binding maximum limits for CO2. With AERO-GUARD the operator is always on the safe side! Read more

60 l condensate collection system
60 l condensate collection system

60 l condensate collection system
This convenient system provides a central collection point for the condensate (oil and water mixture) produced during the compression process inside the compressor. The condensate tank features an integrated float switch which can be relied upon to monitor the level of condensate in the tank and provides protection against overfilling. A combined silencer and filter unit prevents pollution caused by noise or odour.

Scope of delivery, basic version
Scope of delivery, basic version

Scope of delivery, basic version
Complete compressor unit ready for operation. Read more

I 22 breathing air compressor, 90 – 420 bar, 800 – 930 l/min: With electric motor, versions for 330 bar
Type
designation		 Effective
free air delivery1		 Number of
compressor stages		 Speed
approx.		 Motor output
  l/min m³/h cfm rpm kW
I22.0-18.5 800 48 28 4 1180 18.5
I22.0-22 930 57 34 4 1320 22
I 22 breathing air compressor, 90 – 420 bar, 800 l/min: With electric motor, versions for 420 bar
Type
designation		 Effective
free air delivery1		 Number of
compressor stages		 Speed
approx.		 Motor output
  l/min m³/h cfm   rpm kW
I22.0-22-420 800 48 28 4 1180 22

¹ Measured with cylinder filling from 0 to 200 bar (0 to 3000 psi), ±5%
