The compressor blocks in the PE-VE series

IK 150 II compressor block
IK 150 II compressor block
Oil sight glass
Oil sight glass
BAUER KOMPRESSOREN piston
BAUER KOMPRESSOREN piston

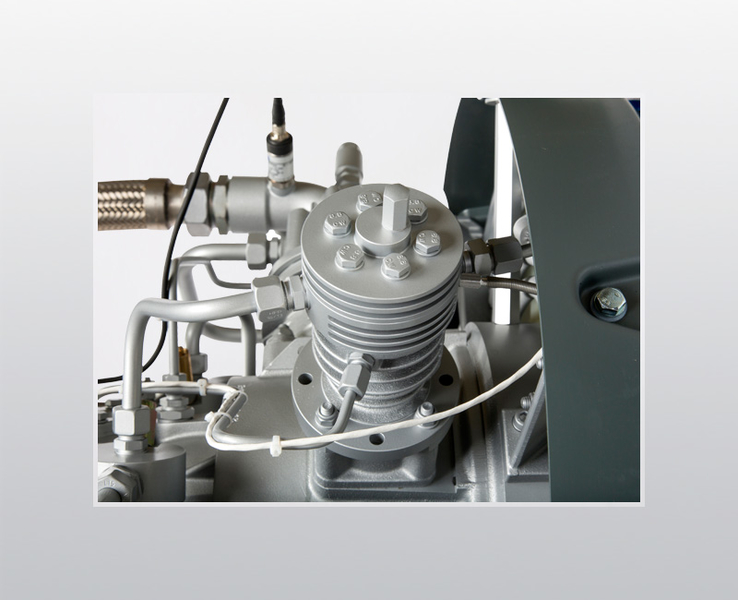

Final stage cylinder
Final stage cylinder
K 120 intermediate cooler
K 120 intermediate cooler

Depending on the model, the compressor blocks in the PE-VE series feature 3 to 4 compressor stages for final pressure levels of 90 to 365 or 420 bar.

With their outstanding surface hardness, plasma-nitrided and plateau-honed cylinders are able to achieve extremely long service lives combined with low energy consumption and reliable oil lubrication of cylinder surfaces.

The high-pressure final stage of the compressor features a piston with piston rings made from high-tech plastic which is virtually wear-free. The compression piston is able to move freely and is not connected to the guide piston. Lateral forces which may cause increased wear are therefore prevented.

Generously dimensioned stainless steel intercoolers and aftercoolers and intermediate and final separators can be relied upon to remove condensate and safeguard long and reliable operation.
